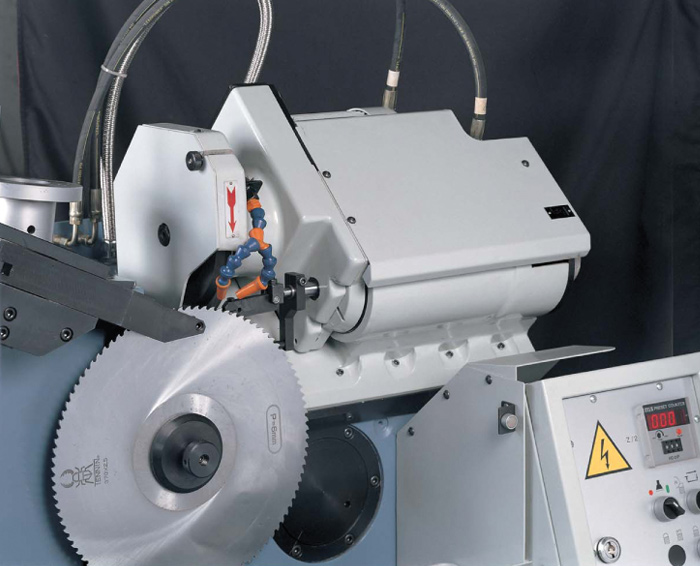

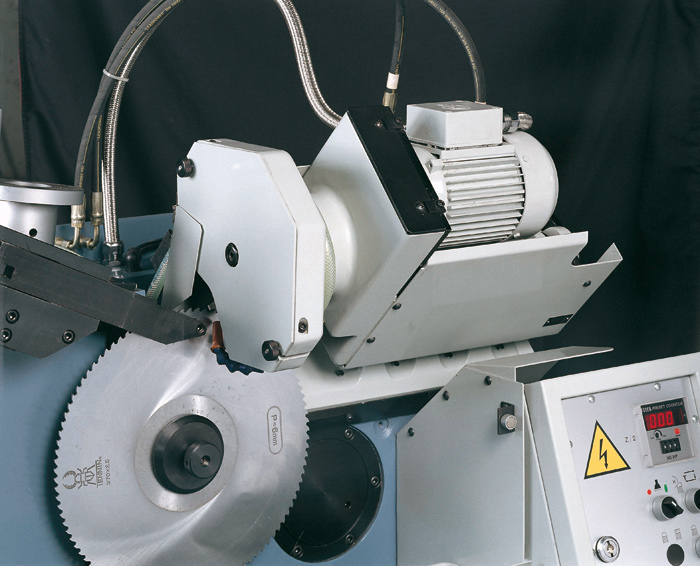

CBN AUTOMATIC CHAMFERING MACHINE

  • Automatic rotation of the grinding wheelhead for chamfering both sides in one single clamping of the saw blade
  • Either 45º or 30º beveling angle setting
  • Selection knob for C or BW type of tooth profile
DESCRIPTION
Saw blade diameter Ø80-Ø600 mm
CNB grinding wheel diameter 200 mm
Bevel angle of chamfering 45º - 30º
Back rake angle 8º / 12º
Grinding speed 15-60 teeth/min
Grinding wheel motor 0,55 kW
Driving motor 0,37 kW
Net weight 650 Kg
Gross weight 850 Kg
Packing size (w x h x d) 1500 x 1900 x 1700 mm
