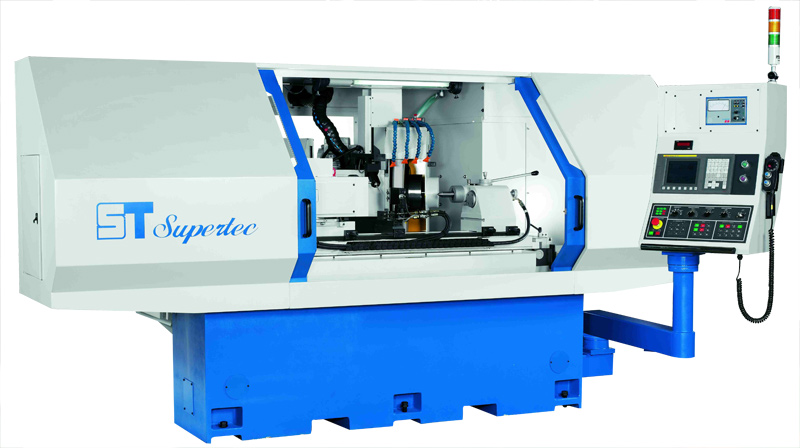

CNC CYLINDRICAL GRINDERS
- CNC Cylindrical Grinders for between centers and chucking operations. The machines are available with a choice of straight wheelhead or angular slide wheelhead.
- Heavily ribbed box-type base made in Meehanite casting. Optimum distance between the guideways offers excellent table support to increase Z axis positioning accuracy and repeatability.
- Rigid-designed workhead with precision bearings and variable spindle speeds. Workhead swings 90º CCW and 30º CW.
- Strong casting tailstock is designed to mount MT3/MT4 or optional MT5. Optional hydraulic tailstock with pedal is available.
- The wheelhead runs on double V guideways hand scraped with Turcite coating by a AC FANUC servo motor,0.001linear feedback and precision ballscrew.
- Wheel Spindle with a combination of hydrostatic and hydrodynamic bearings surrounded by a high pressure oil film eliminates metal to metal contact.
- Box type rigid work table travelling on a cushion of oil. The table is fully supported in the full travel avoiding overhang. Z-axis positioning accuracy is assured with an AC FANUC servo motor and high precision ball screws.
- Internal grinding attachment (optional) swings down into working position for easy and quickly internal grinding operation. Except angular slide wheelhead machines.
- The machines can be customized with a wide selection of systems for automation as electronic probe, automatic OD sizing, dynamic wheel balancing, etc.
- FANUC control with programs for standard applications.
| DESCRIPTION / MODEL | G25A-35CNC | G32A/G38A/G45A-35/50/80/120CNC | G25P-50CNC | G32P/G38P/G45P-50/60/75/100/150/200CNC |
|---|---|---|---|---|
| General Capacity | ||||
| Distance between centers | 350 | 350/500/800/1200 | 500 | 500/600/750/1000/1500/2000 |
| Swing over table | 250 | 320/380/450 | 250 | 320/380/450 |
| Max. grinding diameter | 250 | 300/360/430 | 250 | 300/360/430 |
| Max. load held between centers | 80 kgs | 150 kgs | 80 kgs | 150 kgs |
| Grinding wheel | ||||
| Diameter x width x bore | 510 x 50 x 127 | 510 x 50~100 x 152.4 | 455 x 50 x 127 | 510 x 50~100 x 152.4 |
| Wheel speed | 1650 rpm | 1390 rpm | 1650 rpm | 1390 rpm |
| Max. peripheral speed | 1800 m/min | 2220 m/min | 1800 m/min | |
| Wheelhead | ||||
| Sliding angle | 90° | 60° | 90° | |
| Max. increment speed | 6 m/min | 10 m/min | 6 m/min | |
| Infeed travel | 160 | 225 | 160 | 225 |
| Min. increment infeed | 0,001 | |||
| Workhead | ||||
| Spindle speed (variable) | 50~500 rpm | 30~350 rpm | 50~500 rpm | 30~350 rpm |
| Center taper | MT 3 | MT 4 (opt. MT 5) | MT 3 | MT 4 (opt. MT 5) |
| Spindle type | Fixed & Rotary | |||
| Diameter of bore | 20 | 23 | 20 | 23 |
| Tailstock | ||||
| Center taper | MT 3 | MT 4 (opt. MT 5) | MT 3 | MT 4 (opt. MT 5) |
| Quill travel | 25 | |||
| Table | ||||
| Rapid feedrate | 8 m/min | 10 m/min | 8 m/min | 10 m/min |
| Min. increment infeed | 0,001 | |||
| Swivelling angle CCW | 7° | 9° 7° 5° | 7° | 9° 7° 5° 3° |
| Motor | ||||
| Wheel spindle motor | 7.5 HP | 7.5 HP (opt. 10 HP) | 5 HP | 7.5 HP (opt. 10 HP) |
| Workhead motor | 1/2 HP | 2 HP | 1/2 HP | 2 HP |
| Coolant pump | 1/8 HP | 1/4 HP | 1/8 HP | 1/4 HP |
| Hydraulic pump | 1 HP | 2 HP | 1 HP | 2 HP |
| Lubrication pump | 1/4 HP | |||
| Wheel (X-axis) motor FANUC | 1.2 kW | |||
| Wheel (Z-axis) motor FANUC | 1.2 kW | 1.2 kW - 1.8 kW | ||
| Machine | ||||
| Net weight (semi enclosure) | 3100 kgs | 5200/5600/5800/5800/6300 kgs | 3100 kgs | 5200/5600/5800/5800/6300/6700 kgs |
| Gross weight | 3500 kgs | 5600/6420/7000/7500/7800 kgs | 3500 kgs | 5600/6420/7000/7500/7800/8200 |
