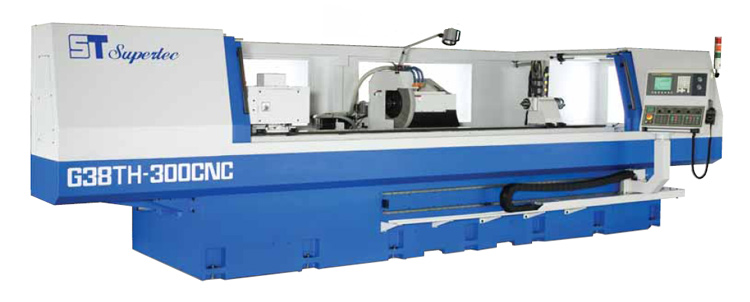

CNC CYLINDRICAL GRINDER TRAVERSE WHEELHEAD

  • CNC Cylindrical Grinders for between centers and chucking operations. 2-axis CNC Traverse Wheelhead. Grinding length up to 4000 mm.
  • Heavily ribbed box-type base made in Meehanite casting. Optimum distance between the guideways offers excellent wheelhead support to increase Z axis positioning accuracy and repeatability.
  • Rigid-designed workhead with precision bearings and variable spindle speeds.
  • Strong casting tailstock is designed to mount MT4 and MT5. Optional hydraulic tailstock with pedal is available.
  • The wheelhead runs on double V guideways hand scraped with Turcite coating by a AC FANUC servo motor,0.001linear feedback and precision ballscrew.
  • Wheel Spindle with a combination of hydrostatic and hydrodynamic bearings surrounded by a high pressure oil film eliminates metal to metal contact.
  • Box type rigid work table with workhead and tailstock.
  • The machines can be customized with a wide selection of systems for automation as electronic probe, automatic OD sizing, dynamic wheel balancing, etc.
  • FANUC control with programs for standard applications.
DESCRIPTION / MODEL G38TH-50CNC G38TH-100CNC G38TH200CNC G38TH-300CNC G38TH-400CNC
General Capacity
Max. grinding length 300
Swing over table 380
Max. grinding diameter 500 1000 2000 3000 4000
Max. load held between centers 192 kgs 650 kgs
Grinding wheel
Diameter x width x bore 510 x 50 x 152.4
Wheel speed 1250 rpm
Max. peripheral speed 33 m/sec
Wheelhead
X-axis Sliding angle 90°
Auto. Rapid traverse 6 m/min
Min. increment infeed 0,0001
Infeed travel 225
Y-axis Rapid feedrate 0~150
Min. increment feed 0,0001
Workhead
Spindle speed (variable) 50~350 rpm
Center taper MT 4 MT 6
Tailstock
Center taper MT 4 MT 5
Quill travel 25 50
Motor
Wheel spindle motor 5.5 kW option 7.5 kW
Workhead motor 1.2 kW
Coolant pump 0.18 kW
Hydraulic pump 0.75 kW
Wheel (X-axis) motor FANUC 1.2 kW
Wheel (Z-axis) motor FANUC 1.2 kW 1.8 kW
Machine
Net weight
Gross weight
