KTC-65 / KTC-85: HIGH SPEED CARBIDE SAWING MACHINES
WITH CNC CONTROL

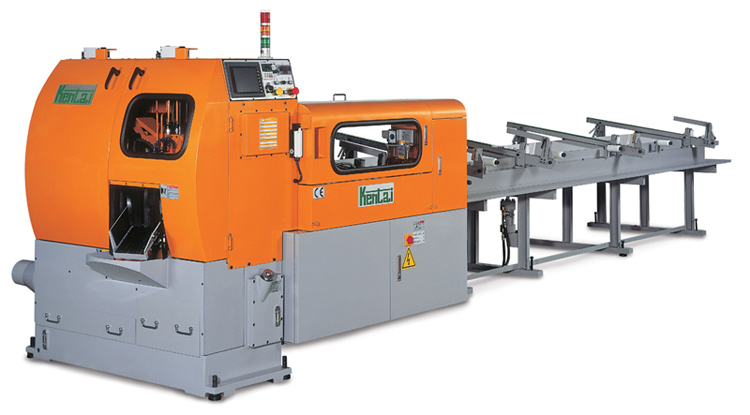

Photo of KTC 65-85

Download Complete
Specs. Table

Image gallery

Photo of KTC 65-85 Photo of KTC 65-85 Photo of KTC 65-85 Photo of KTC 65-85
  • High production fully automatic Sawing machines KTC series for ferrous and non ferreous materials.

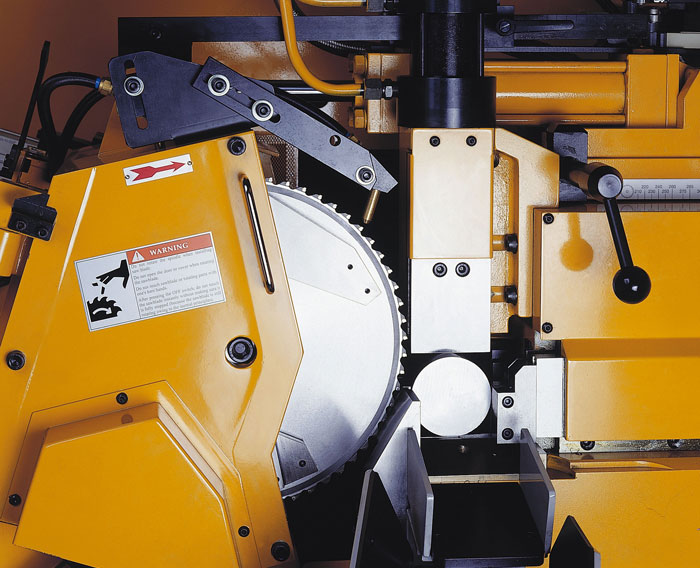

  • Heavy duty pivot arm saw head. Servo feed saw head optional

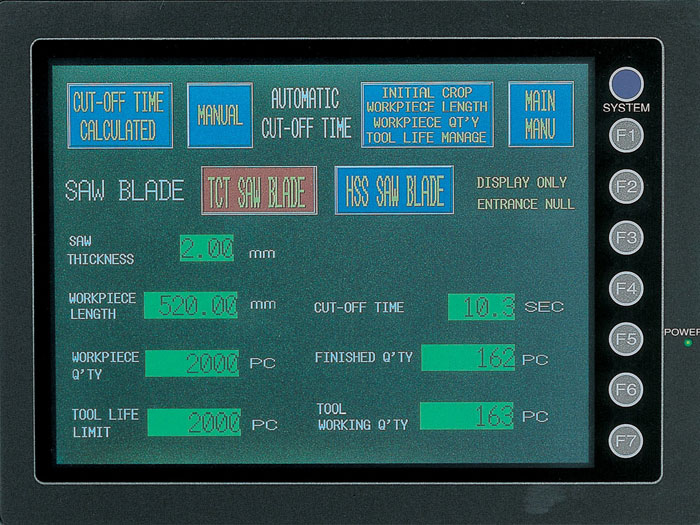

  • PLC control 7.7” color touch screen with alarm message display
  • Infinitely variable cutting speeds

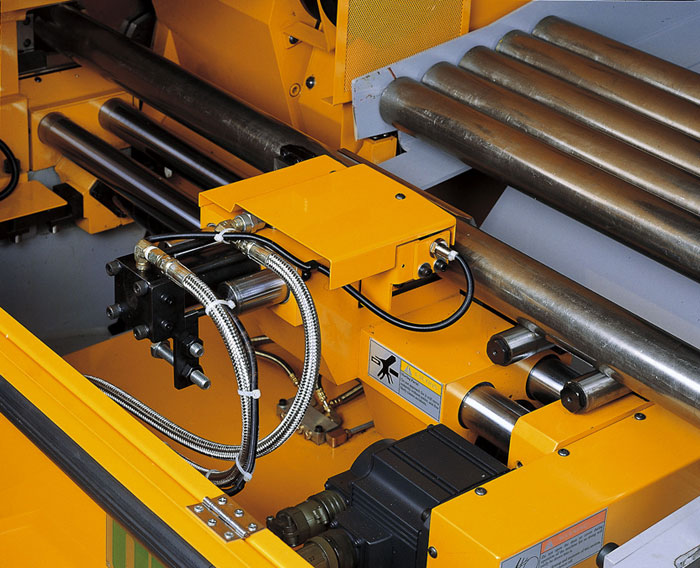

  • GFC Gripper feed carriage system with servo motor and C5 grade ball screw
  • Auto-loading magazine for round and square bars with optional unloading device
  • Real time monitoring
  • Steel brush synchronized to clear out the chips on the saw blade
DESIGNATION KTC-65 KTC-85
CUT-OFF CAPACITY
Round Bar Ø 8-65 mm Ø 10-85 mm
Square Bar Ø 50 mm Ø 50 mm
SAW HEAD & SPINDLE
TCT Disc MD Ø 250/280 x 2.0 t mm Ø 315 x 2.25 t mm
Rotation Speed 18-200 rpm 12-180 rpm
MOTOR
Spindle motor 7.5 kW 4 polos
HYDRAULIC EQUIPMENT
Working pressure 70 bar
Tank capacity 90 liters
PNEUMATIC EQUIPMENT
Working pressure 4-6 bar
Electrical power 14kW
DIMENSIONS & WEIGHT
Dimension 6565 x 1772 x 1735
Net weight 2500 Kg. 2700 Kg.
