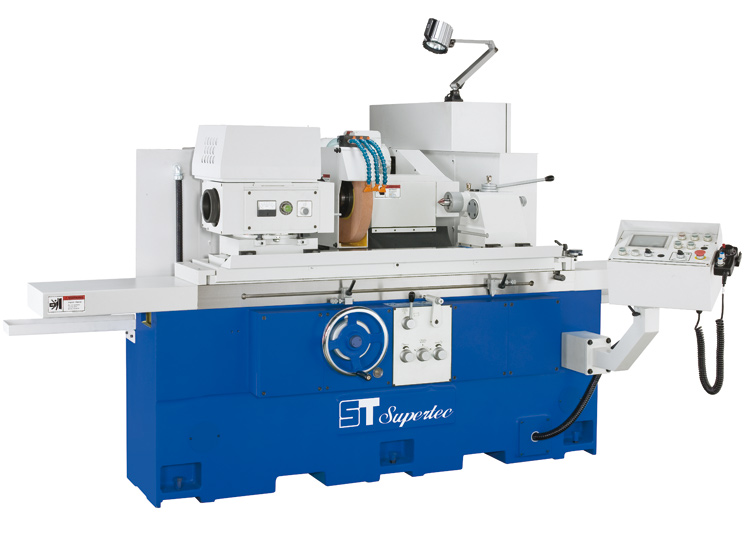

STD CYLINDRICAL GRINDERS

  • Universal Cylindrical Grinders for between center and chucking operations. Available in manual or automatic infeed.
  • Heavily ribbed box-type base made in Meehanite casting.
  • Rigid-designed workhead with precision bearings and variable spindle speeds. Workhead swings 90º CCW and 30º CW.
  • Strong casting tailstock is designed to carry MT3/MT4 or optional MT5. Optional hydraulic tailstock with pedal is available.
  • The wheelhead runs on V and flat guideways with Turcite coating by a micro stepping motor.
  • Cartridge type wheel spindle permanently lubricated and equipped with 4 super precision angular contact type bearings. Spindle motor with 5/7,5 HP.
  • Rigid work table travelling on a cushion of oil. The table is fully supported in the full travel avoiding overhang.
  • Hinged, the internal grinding attachment (optional) swings down into working position for easy and quickly internal grinding operation.
  • The machines can be customized with a wide selection of systems for automation as electronic probe, automatic OD sizing, dynamic wheel balancing, etc.
  • Mitsibishi PLC control uses a menu driven LCD touch screen for simple operation (NC models).
DESCRIPTION / MODEL G25P-50H/NC G32P/G38P/G45P-60/100/150/200H/NC
General Capacity
Distance between centers 500 600/1000/1500/2000
Swing over table 260 320/380/450
Max. grinding diameter 250 300/360/430
Max. load held between centers 80 kgs 150 kgs
Grinding wheel
Diameter x width x bore 355 x 38 x 127 405 x 50 x 127
Spindle speed (60 Hz/50 Hz) 1800 rpm 1650 rpm
Wheelhead
Swivelling angle (R & L) +/- 30° +/- 30°
Infeed travel 135 245
Hand feed travel 90 200
Top slide travel 180
Automatic rapid travel 45
Auto increment infeed (NC) 0.001~0.999
Handwheel per graduation 0,005 0,004
Handwheel per revolution 2
Workhead
Swivelling angle (R & L) +/- 45° 90°
Center taper MT 3 (opt. 5C collets) MT 4 (opt. MT 5, 5C collets)
Spindle speed 150 / 264 / 156 / 480 rpm 30~350 rpm (variable speed)
Tailstock
Center taper MT 3 MT 4 (opt. MT 5)
Quill travel 25
Table
Swivelling angle (R & L) +/- 8° +/-9/7/5/3°
Traverse speed 30~7000 mm/min
Handwheel per revolution 10
Internal grinding
Spindle speed 12000/18000 rpm or 25000 rpm
Max. grinding bore 30~100
Max. grinding length 110
Max. chucking length 315
Max. chucking diameter 150
Motor
Wheel spindle motor 5 HP (4 P) 7.5 HP (4 P)
Workhead motor 1/2 HP (4 P) 2 HP (4 P)
Coolant pump 1/8 HP (4P) 1/4 HP (4P)
Hydraulic pump 2 HP (4P)
Internal grinding motor 2 HP (4P)
Machine
Net weight 2800 kgs 3500/3600/4700/6000 kgs
Gross weight 2250 kgs 3200/4000/4700/5600/6780
Packing dimensions (L x W x H) 22280 x 2280 x 1940 3030/3030/4030/5220 x 2250 x 2030
